Dependencies

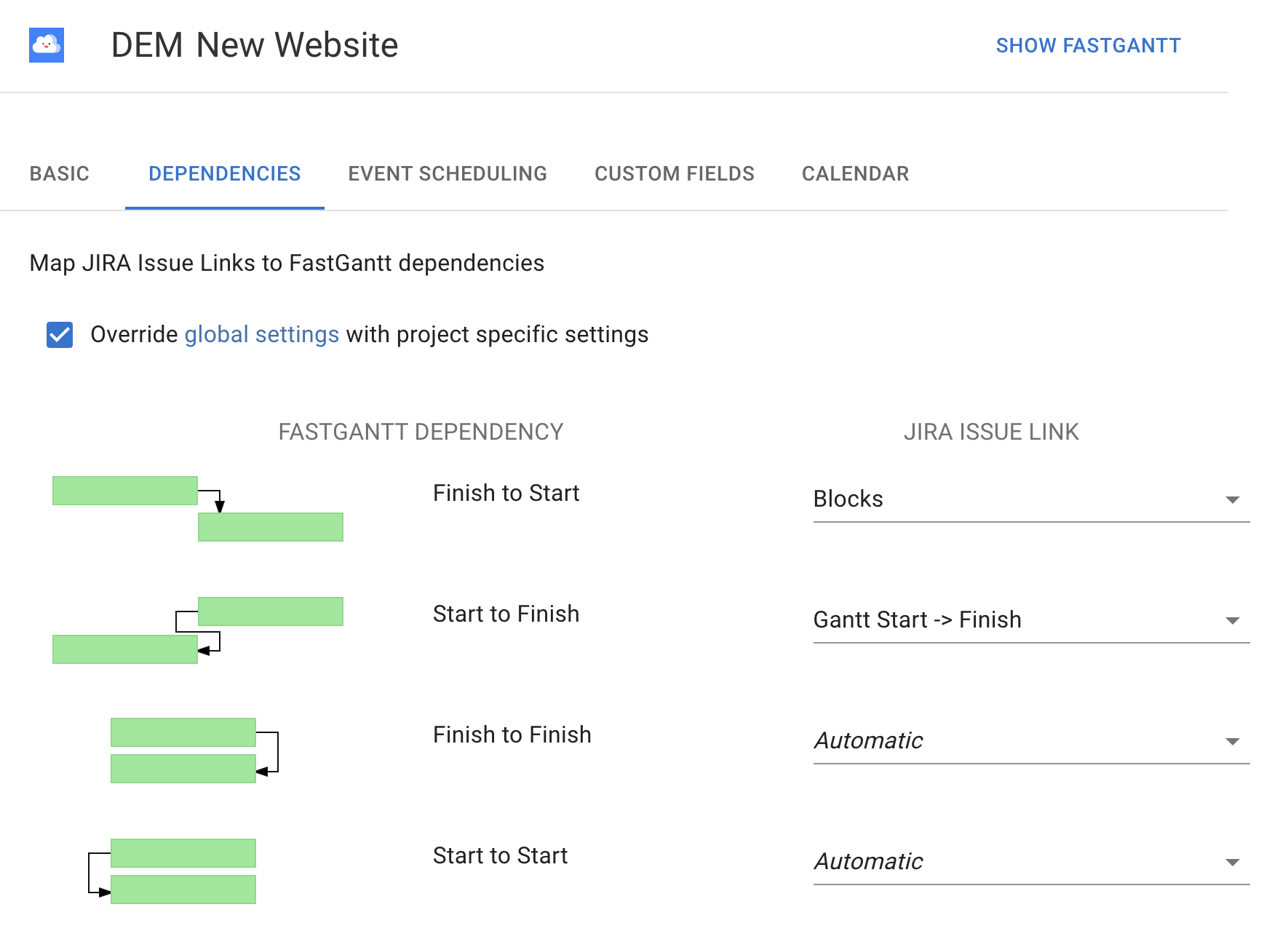

JIRA Issue Link to FastGantt Dependency Mapping

This defines the mapping between JIRA Issue links and FastGantt dependencies. You can find more information about JIRA issue linking here.

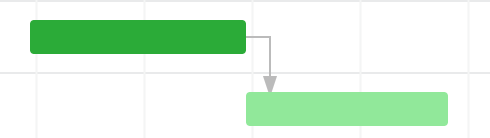

Finish-to-Start

This type of dependency restricts the dependent event to not start earlier than the end date of the preceding event.

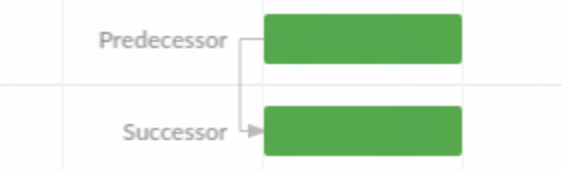

Start-to-Start

With this dependency type, the succeeding event is delayed to not start earlier than the start of the preceding event.

Finish-to-Finish

The succeeding event cannot finish before the completion of the preceding event.

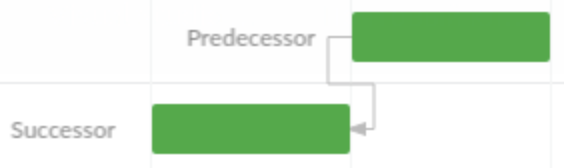

Start-to-Finish

The finish of the succeeding event is constrained by the start of the preceding event. The successor cannot finish before the predecessor starts.
